Item#	Weight	Price	Qty

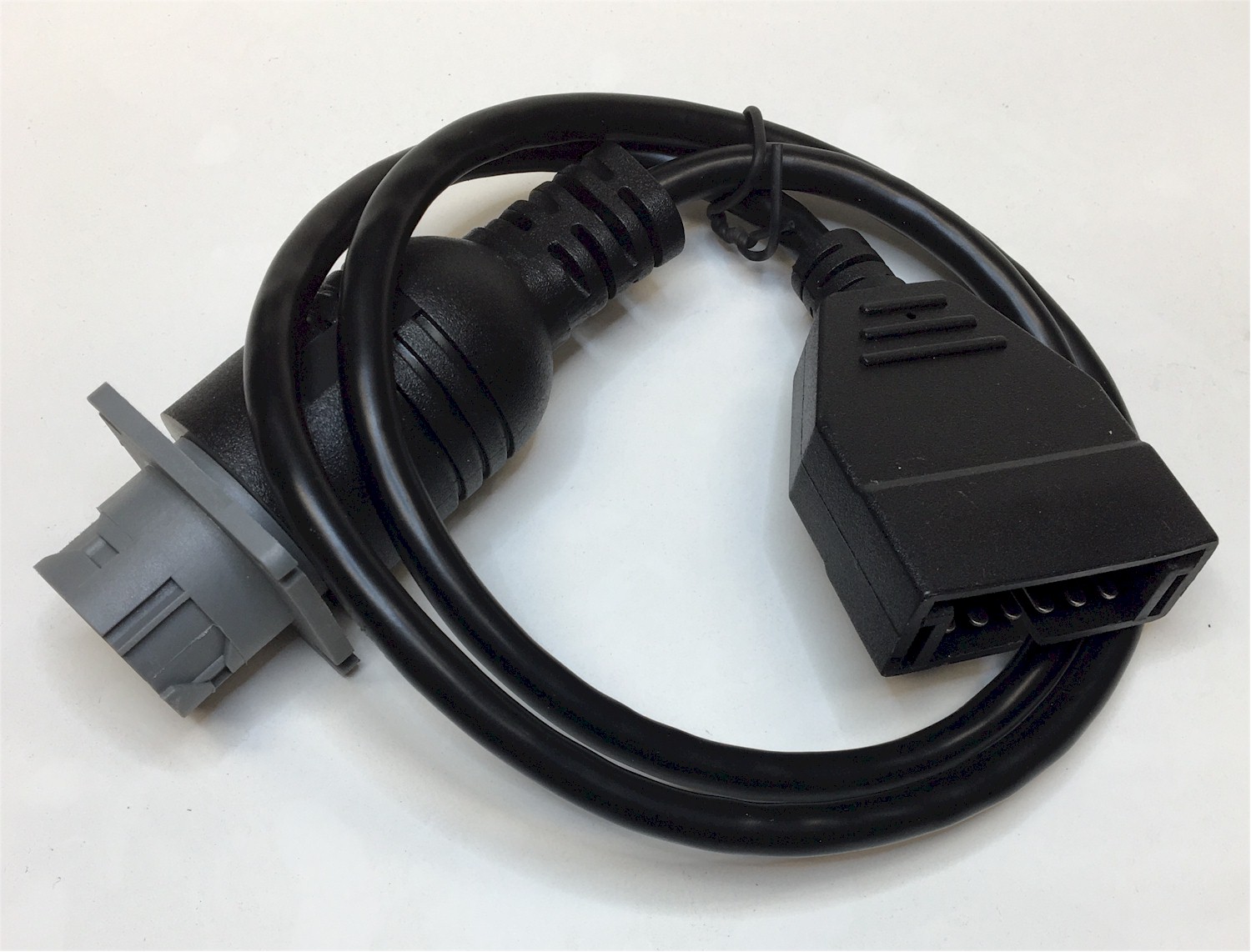

J1708 ALDL Male to 9-pin Male Adapter
ALDLto9Madap	0.4 lbs	$40.00 ea

Some J1708 vehicles use the older style GM ALDL connector. This adapter converts the ALDL J1708 connection to a standard J1708 6-pin connector.

Wiring Connections

ALDL	Signal	6-pin	9-pin
A	Ground	E	A
H	Battery	C	B
J	J1708+	A	F
K	J1708-	B	G
